Prompt user with TLC options before running

[klinvill]

Addresses #172.

The idea behind this PR is to pop up an input box prompt with the TLC options when running the "Check model with TLC" command. This both shows the user what options TLC will run with and gives them a convenient place to change the options. This PR then saves the user-provided options to the workspace settings if a workspace is open, or to the global settings if not, allowing the same options to be prompted to the user for the next run, even across sessions.

This PR adds some user friction, but in most cases it just requires the user to press enter since the options are pre-populated from the previous run.

Outstanding questions/concerns I have with this PR are:

• Is the added user friction annoying enough to warrant adding a checkbox to the settings to disable the prompt?
• I omit the -config argument from pre-populating by default since I want users to be able to re-use the same options across multiple modules, however I include the -coverage argument. This means that default options are now defined in two places: coverage in getTlcOptions() and config in buildTlcOptions().
• TLC options are saved to workspace settings when possible, and global settings when not. Should they instead always be saved to the global settings?
• Tests for getTlcOptions() would require UI interaction. This would mean integrating a framework like vscode-extension-tester or puppeteer/selenium. This would add complexity and a maintenance burden. Would it be worth it?

[klinvill]

@lemmy how has the TLC options prompt been working for you? Are there changes you think should be made?

I made a few updates here to persist the user-entered TLC options to the workspace configurations by default (or global if a workspace is not open). When you get the chance, can you take a look and let me know what you think?

[lemmy]

Not to comment on the technical aspects, but I've been using this feature (earlier commit) for a few weeks now and it has significantly reduced the number of times I ran TLC with bogus parameters (because command-line parameters are store as extension settings). Unless there is a better place to show TLC parameters before model-checking, I suggest merging this PR asap.

[lemmy]

FWIW: I suggest not storing the settings at the workspace or global level; they are model-level settings. This extension has no corresponding concept (config \cup parameters \cup JVM tuning make up a Toolbox's model).
Examples:

• Spec A deadlocks while spec B does not
• It's feasible to visualize the state space of Spec A with config C but infeasible with config D
• ...

For now, the input box should just be pre-populated with a user's previous input.

[klinvill]

FWIW: I suggest not storing the settings at the workspace or global level; they are model-level settings

While this is true, I tend to pass the same few options to TLC. For my usage, it seems that the friction of typing in the options again when you (re-)open a window is more than that of clearing the options when you switch models. Is this not the case in your experience?

[lemmy]

My use of TLA+ might not be representative because I work more on TLA+ rather than with TLA+. That said, I would assume that the average user has one vscode workspace per spec, and, thus, would want parameters to be stored at the workspace level (if at all).
I suggest gathering more feedback.

[klinvill]

@alygin, @hwayne, do you have any thoughts on if TLC options should be:

• Only persisted for a session. When you close the window, the options are reset to default (-coverage 1 in this case).
• Persisted for a workspace. When you reopen a workspace, the last options you used for that workspace are pre-populated.
• Persisted globally. When you open a new workspace, or reopen the same workspace, the last options you used anywhere are pre-populated.
• Combination of the above two: persisted for a workspace when a workspace is open, otherwise persisted globally.

For reference, the clip below shows what the implementation currently looks like. By default it prompts with the options -coverage 1. The provided options are then saved in the workspace settings. These saved settings are used to pre-populate the TLC options for the next run.

tlc_options.mp4

[lemmy]

/cc @Calvin-L @will62794 (please ignore if you don't use the TLA+ vscode extension)

[Alexander-N]

• Is the added user friction annoying enough to warrant adding a checkbox to the settings to disable the prompt?

I think such an option would be great.

Persisting the options for a workspace seems fine, but I have no strong opinion on that.

[alygin]

This PR adds some user friction, but in most cases it just requires the user to press enter since the options are pre-populated from the previous run.

There's the "Run last model check again" command (handler) that should eliminate this friction for most cases by running the last check with no options dialog. Unfortunately, now it triggers the prompt.

Could you, please, make it always use the last options without asking the user? This will bring model checking back to one shortcut (or a single mouse click) distance from the user.

[alygin]

As for the user preferences destination, I think the "Workspace first" attitude is reasonable.

But I'm afraid the extension behavior will be confusing in the following scenario:

1. The user runs a model check, provides some options.
2. The user goes to global settings and changes the default options for TLC.
3. The user runs a model check, and the extensions shows the prompt with the same options he or she provided on the step 1, with no respect to the new global settings.

I have no idea on how to handle that correctly. Leave it this way? Reset the options provided by the user?

[klinvill]

There's the "Run last model check again" command (handler) that should eliminate this friction for most cases by running the last check with no options dialog. Unfortunately, now it triggers the prompt.

Could you, please, make it always use the last options without asking the user? This will bring model checking back to one shortcut (or a single mouse click) distance from the user.

Sure thing. I just pushed a change to show the prompt for the checkModel() and checkModelCustom() handlers, but not for the runLastCheckAgain() handler.

I didn't realize that the "Evaluate expression" command also runs the model checker. I opted to not prompt for that command. Do you agree with this decision or do you think it should also prompt for "Evaluate expression"?

[klinvill]

I'm afraid the extension behavior will be confusing in the following scenario:

1. The user runs a model check, provides some options.
2. The user goes to global settings and changes the default options for TLC.
3. The user runs a model check, and the extensions shows the prompt with the same options he or she provided on the step 1, with no respect to the new global settings.

I have no idea on how to handle that correctly. Leave it this way? Reset the options provided by the user?

I'm using vscode's default configuration behavior which means that the workspace settings will take precedence over the global settings.

It looks like the settings show a (small) message when a setting is set at both the global and workspace level:

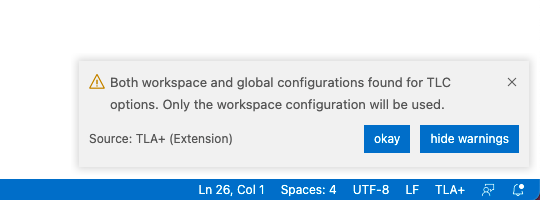

But maybe we could add a warning message (that the user can silence) to warn the user when both global and workspace settings are set? Something like this:

I can also fix the behavior to unset the workspace settings when any prompt is given. This would ensure the next prompt is pre-populated from the global settings (if present).

[sonarqubecloud]

Kudos, SonarCloud Quality Gate passed!

0 Bugs
0 Vulnerabilities
0 Security Hotspots
0 Code Smells

No Coverage information
0.0% Duplication

[klinvill]

• Is the added user friction annoying enough to warrant adding a checkbox to the settings to disable the prompt?

I think such an option would be great.

The latest commit adds an option to disable the prompt:

[lemmy]

I didn't realize that the "Evaluate expression" command also runs the model checker. I opted to not prompt for that command. Do you agree with this decision or do you think it should also prompt for "Evaluate expression"?

Off the top of my head, I can't think of parameters that I would want to pass when evaluating (constant) expressions.

[alygin]

Looks good, thank you!

[lemmy]

This PR interferes with the functionality to evaluate the selected expression from the editor's right-click context menu.

[klinvill]

This PR interferes with the functionality to evaluate the selected expression from the editor's right-click context menu.

@lemmy is this just in your fork, or also in the main repo? I added a showOptionsPrompt arg to the doCheckModel() function that disables the prompt. It looks like it's properly disabled in the master branch: https://github.com/alygin/vscode-tlaplus/blob/917305bffb75fb82fd77218c1d8c0dead66689fd/src/commands/evaluateExpression.ts#L98 (It looks like this is the call for both the TLA+: Evaluate expression... command and the Evaluate selected expression command)

[lemmy]

@klinvill Thanks, that might very well be it. Will check!

Btw. I realized that the dialog could be used to support evaluating expressions in a spec that declares variables and/or constants, but lacks a model:

---------------------- MODULE ATD ---------------------
EXTENDS Naturals

CONSTANT N

ASSUME NIsPosNat == N \in Nat \ {0}

Node == 0 .. N-1
=============================================================================

If a user tries to evaluate Node, one gets:

Error evaluating expression:
The constant parameter N is not assigned a value by the configuration file.

It would be nice if one could type WITH N <- 42 in the prompt (suffix of regular TLA+ expression INSTANCE ATD WITH N <- 42).

[lemmy]

@klinvill Can you suggest how to logically merge your changes with the ones related to the TLC debugger? Both of us changed APIs in tla2tools.ts, but more fundamentally the TLC debugger integrates TLC with the VSCode launch API.
