TCP/IP server to share waveforms coming from stdin into SDR UHD bridge to be read from ngscopeclient https://www.ngscopeclient.org/
This bridge emulates a scopehal-uhd-bridge using SCPI instrumentation commands (port 5025) and a Twinlan TCP socket (port 5026).
Intended to test our setup. The bridge generates a tone (single frequency) that is sent to ngscopeclient. The tone frequency is adjustable. The sampling frequency and amplitude are controled from the ngscopeclient UI.
First start the bridge by:
python3 stdin_python_bridge.py --tone
And then select SDR instrument in ngscopeclient:
Add -> SDR -> Connect... -> Transport: twinlan -> localhost:5025:5026
And then click on: Play
(Substitute localhost with your host name or IP if stdin_python_bridge.py is running in some other computer)
In this mode we can pipe files or streams to stdin-python-bridge to be read by ngscopeclient.
cat YOUR_FILE | python3 stdin_python_bridge.py --stdin
Available encode formats:
Two channels (8 bits + 8 bits) unsigned intenger expected to be in IQ signal format.
cu8 is common in rtl_sdr.
This is a test file from rtl_433 of a DirecTV remote capture of a ~50 KHz signal.
Example:
cat g001_433.92M_250k.cu8 | python3 stdin_python_bridge.py --stdin --samplerate 250000 --encode cu8
Two channels (float32 + float32) expected to be in IQ signal format.
(this is the default)
SoX manual page: https://man.cx/sox(1)

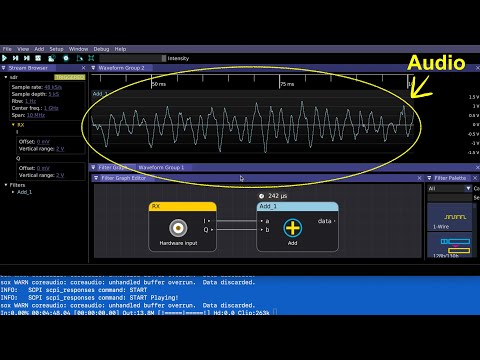

Read a WAV file to create a 2 channels pipe with I and Q components (MacOS):
sox -V6 "|sox 1001.float32.mono.wav -p" "|sox 1001.float32.mono.wav -p hilbert -n 511" -r48000 -c2 -efloating-point -t raw - --combine merge | python3 stdin_python_bridge.py --stdin --encode float32iq --samplerate 48000
Read from microphone to create a 2 channels pipe with I and Q components (MacOS):
sox -V6 "|sox -v10 -t coreaudio 'MacBook Pro Microphone' -r48000 -c1 -p" "|sox -v10 -t coreaudio 'MacBook Pro Microphone' -r48000 -c1 -p hilbert -n 511" -r48000 -c2 -efloating-point -t raw - --combine merge | python3 stdin_python_bridge.py --stdin --encode float32iq --samplerate 48000
Read from line-in to create a 2 channels pipe expecting the source to be I/Q already (PC Ubuntu):
sox -V6 -48000 -b32 -c2 -t alsa -D hw:CARD=PCH,DEV=0 -b32 -efloating-point -t raw - | python3 stdin_python_bridge.py --stdin --encode float32iq --samplerate 48000
Two channels (float32 + float32) expected to be in IQ complex signal format.
This is the internal format of this script and the way the samples are sent over the wire.
Specify the expected sampling rate of the source signal in samples/second.
Frequency of the test tone in Hz.
(Impacts performance)
Show the complex64 item of the signal in Hexadecimal, the real and imaginary component as float32 and the wave as ASCII.
INFO: WAVE handle send: |cd cc cc 3d 00 00 80 bf| 0.10000000149011612 -1.0 │─────────────────■──────────────┼■───────────────────────────────│
INFO: WAVE handle send: |bc e8 aa 3e f4 50 71 bf| 0.3338068723678589 -0.9426414966583252 │ ■ │■ │
INFO: WAVE handle send: |24 1b 21 3f 0a f3 46 bf| 0.6293203830718994 -0.7771459817886353 │ ■ │ ■ │
INFO: WAVE handle send: |a0 46 5a 3f 77 c2 05 bf| 0.8526401519775391 -0.5224985480308533 │ ■ │ ■ │
INFO: WAVE handle send: |e2 67 7a 3f cd e6 54 be| 0.9781476259231567 -0.2079116851091385 │ ■│ ■ │
INFO: WAVE handle send: |55 cf 7d 3f a8 a8 05 3e| 0.9914448857307434 0.13052618503570557 │ ■│ ■ │
INFO: WAVE handle send: |01 19 64 3f 71 71 e8 3e| 0.8910065293312073 0.45399048924446106 │ ■ │ ■ │
INFO: WAVE handle send: |01 38 30 3f 23 b2 39 3f| 0.6883545517921448 0.7253744006156921 │ ■ │ ■ │
INFO: WAVE handle send: |c9 3f d0 3e 1d de 69 3f| 0.4067366421222687 0.9135454297065735 │ ■ │ ■ │
INFO: WAVE handle send: |2a af a0 3d f9 35 7f 3f| 0.07845909893512726 0.9969173073768616 │ ■ │ ■│
INFO: WAVE handle send: |ee 83 84 be ea 46 77 3f| -0.258819043636322 0.9659258127212524 │───────────■────────────────────┼───────────────────────────────■│
INFO: WAVE handle send: |00 00 11 bf ef f9 52 3f| -0.56640625 0.8241261839866638 │ ■ │ ■ │
INFO: WAVE handle send: |bd 1b 4f bf 18 79 16 3f| -0.80901700258255 0.5877852439880371 │ ■ │ ■ │
INFO: WAVE handle send: |36 75 75 bf 76 6a 91 3e| -0.9588197469711304 0.28401535749435425 │■ │ ■ │
INFO: WAVE handle send: |2f a6 7f bf 3a 5e 56 bd| -0.9986295104026794 -0.0523359552025795 │■ │ ■ │
INFO: WAVE handle send: |5e 83 6c bf 15 ef c3 be| -0.9238795042037964 -0.3826834261417389 │ ■ │ ■ │
INFO: WAVE handle send: |bd 3e 3e bf 25 4c 2b bf| -0.7431448101997375 -0.6691306233406067 │ ■ │ ■ │
INFO: WAVE handle send: |27 4e f4 be 29 fa 60 bf| -0.4771587550640106 -0.8788171410560608 │ ■ │ ■ │
INFO: WAVE handle send: |5b 30 20 be 25 d9 7c bf| -0.15643446147441864 -0.9876883625984192 │ ■ │■ │
INFO: WAVE handle send: |f3 9b 3a 3e 98 b6 7b bf| 0.18223552405834198 -0.9832549095153809 │──────────────────■─────────────┼■───────────────────────────────│
