G-code Viewer

A Flutter widget for visualizing G-code paths in 3D with interactive controls.

Features

• Visualize G-code toolpaths in 3D space
• Distinguish between cutting and travel moves with different colors
• Interactive pan and zoom functionality
• Support for G-code arcs (G2/G3)
• Optional grid display
• Customizable colors and line thickness
• Supports millimeters and inches
• Two interaction modes: move (pan/zoom) and rotate
• Configurable performance settings

Requirements

• Flutter SDK
• Android NDK version 27.0.12077973 or higher (required by file_picker plugin)

Screenshots

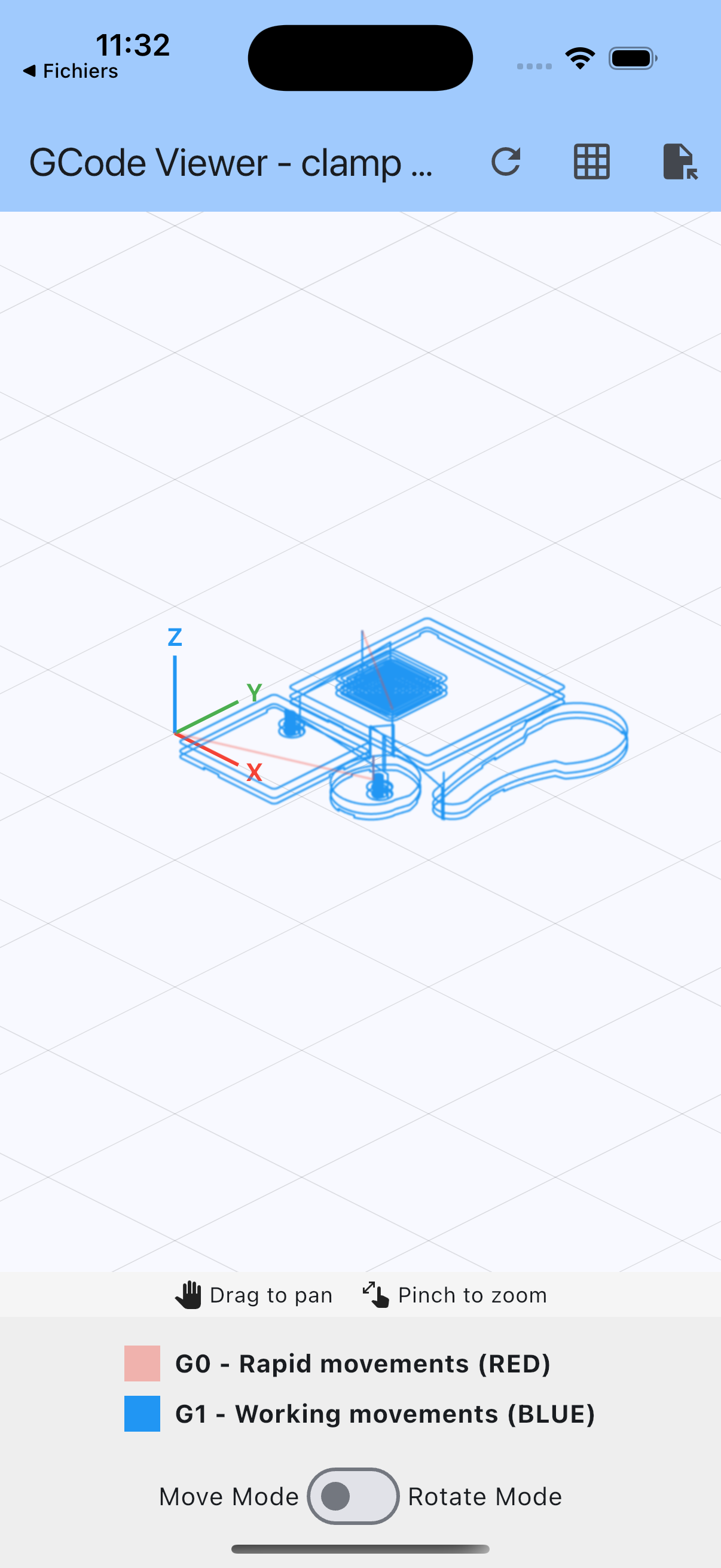

iOS

iPad

Android

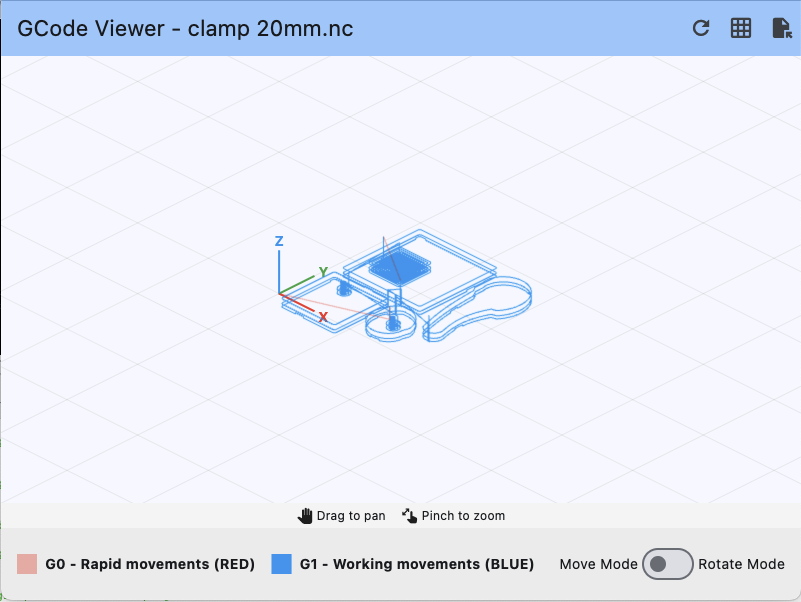

macOS

Installation

Add gcode_view as a dependency in your pubspec.yaml file:

dependencies:
  gcode_view: ^0.0.1

Usage

Import the package:

import 'package:gcode_view/gcode_view.dart';

Use the widget in your Flutter application:

// Sample G-code string
final String gcode = """
G0 X0 Y0 Z10
G1 Z0 F100
G1 X10 Y0 F200
G1 X10 Y10
G1 X0 Y10
G1 X0 Y0
G0 Z10
""";

// In your build method
GcodeViewer(
  gcode: gcode,
  isRotationMode: false, // true for rotation mode, false for move mode
  cutColor: Colors.blue,
  travelColor: Colors.grey,
  pathThickness: 2.0,
)

Using a controller

You can use a controller to programmatically reset the view:

final controller = GcodeViewerController();

// Later in your code
GcodeViewer(
  gcode: gcode,
  controller: controller,
)

// To reset the view to initial position
ElevatedButton(
  onPressed: () => controller.resetView(),
  child: Text('Reset View'),
)

Complete example

import 'package:flutter/material.dart';
import 'package:gcode_view/gcode_view.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'G-code Viewer Demo',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.blue),
        useMaterial3: true,
      ),
      home: const MyHomePage(title: 'G-code Viewer Demo'),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key, required this.title});

  final String title;

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  final controller = GcodeViewerController();
  bool isRotationMode = false;

  // Sample G-code
  final String gcode = """
  G0 X0 Y0 Z10
  G1 Z0 F100
  G1 X50 Y0 F200
  G1 X50 Y50
  G1 X0 Y50
  G1 X0 Y0
  G0 Z10
  G0 X10 Y10
  G1 Z0
  G2 X30 Y30 I20 J0
  G0 Z10
  """;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text(widget.title),
        actions: [
          IconButton(
            icon: const Icon(Icons.refresh),
            onPressed: () => controller.resetView(),
            tooltip: 'Reset View',
          ),
        ],
      ),
      body: Column(
        children: [
          // Mode selector
          Padding(
            padding: const EdgeInsets.all(8.0),
            child: Row(
              mainAxisAlignment: MainAxisAlignment.center,
              children: [
                const Text('Move Mode'),
                Switch(
                  value: isRotationMode,
                  onChanged: (value) {
                    setState(() {
                      isRotationMode = value;
                    });
                  },
                ),
                const Text('Rotate Mode'),
              ],
            ),
          ),
          // G-code viewer
          Expanded(
            child: GcodeViewer(
              gcode: gcode,
              isRotationMode: isRotationMode,
              controller: controller,
              cutColor: Colors.blue,
              travelColor: Colors.grey.withOpacity(0.5),
              pathThickness: 2.5,
              showGrid: true,
              config: const GcodeViewerConfig(
                useLevelOfDetail: true,
                usePathCaching: true,
                maxPointsToRender: 10000,
                preserveSmallFeatures: true,
                smallFeatureThreshold: 5.0,
                zoomSensitivity: 0.5,
                arcDetailLevel: 1.0,
              ),
            ),
          ),
        ],
      ),
    );
  }
}

Customization

The GcodeViewer widget accepts several parameters for customization:

Parameter	Type	Default	Description
gcode	String	required	The G-code string to parse and display
isRotationMode	bool	required	Whether the viewer is in rotation mode (true) or movement mode (false)
controller	GcodeViewerController?	null	Optional controller to programmatically interact with the viewer
pathThickness	double	2.5	The thickness of the path lines
cutColor	Color	Colors.lightBlue	The color of the cutting moves
travelColor	Color	Colors.grey	The color of the travel moves
gridColor	Color	Colors.black12	The color of the grid lines
showGrid	bool	true	Whether to display the grid
isMillimeters	bool	true	Whether the units are millimeters (true) or inches (false)
config	GcodeViewerConfig?	null	Configuration for performance and rendering options

Configuration Options

The GcodeViewerConfig class allows you to customize various aspects of the viewer's behavior:

Parameter	Type	Default	Description
useLevelOfDetail	bool	true	Whether to use level-of-detail rendering based on zoom
usePathCaching	bool	true	Whether to use path caching for better performance
maxPointsToRender	int	10000	Maximum points to render at once for performance (0 = no limit)
preserveSmallFeatures	bool	true	Whether to enable enhanced small feature detection
smallFeatureThreshold	double	5.0	Threshold in mm below which features are considered "small"
zoomSensitivity	double	0.5	Controls the sensitivity of zooming gestures
arcDetailLevel	double	1.0	Detail level for arc rendering

License

This project is licensed under the MIT License - see the LICENSE file for details.
