Improve ZNCLBL01LM support #5104

mandrean · 2022-12-07T19:43:48Z

New features:

Calibrating limits (start, end, reset)
Opening/closing hooks
Enabling/disabling "pull to open/close"

- Refactor converters - Clearing limits calibration - Opening/closing hooks - Enabling/disabling "pull to open/close"

Koenkk · 2022-12-08T16:22:43Z

devices/xiaomi.js

-                .withDescription('Hooks state'),
+            exposes.enum('motor_state', ea.STATE, ['stopped', 'opening', 'closing', 'pause']).withDescription('Motor state'),
+            exposes.binary('running', ea.STATE, true, false).withDescription('Whether the motor is moving or not'),
+            exposes.enum('hooks_action', ea.SET, ['unlock', 'lock']).withDescription('Hooks action'),


I suggest to change this to action and rename the unlock/lock to hooks_unlock/hooks_lock

Wouldn't that collide somehow with the existing read-only field also called action?

No, since action is not a state (something that has to be persisted).

Koenkk · 2022-12-14T16:43:02Z

converters/toZigbee.js

-        convertGet: async (entity, key, meta) => {
-            await entity.read('aqaraOpple', [0x040B], manufacturerOptions.xiaomi);
+    ZNCLBL01LM_action: {
+        key: ['action'],


I just see now that this a settable thing, then action should not be used, my apologies.

Can we rename this to hooks_lock and then accept the values LOCK and UNLOCK?

We can then use the following expose:

exposes.binary('hooks_lock', ea.STATE_SET, 'LOCK', 'UNLOCK').withDescription('Lock the curtain hooks'),

Better now?

Perfect, I added one more improvement to also have the hooks_lock present in the state. It also changes based on the hooks_action now. Can you check if it works correctly? If yes then this can be merged.

Will check!

@Koenkk Works great!

Do you get motor_state even when it isn't running?

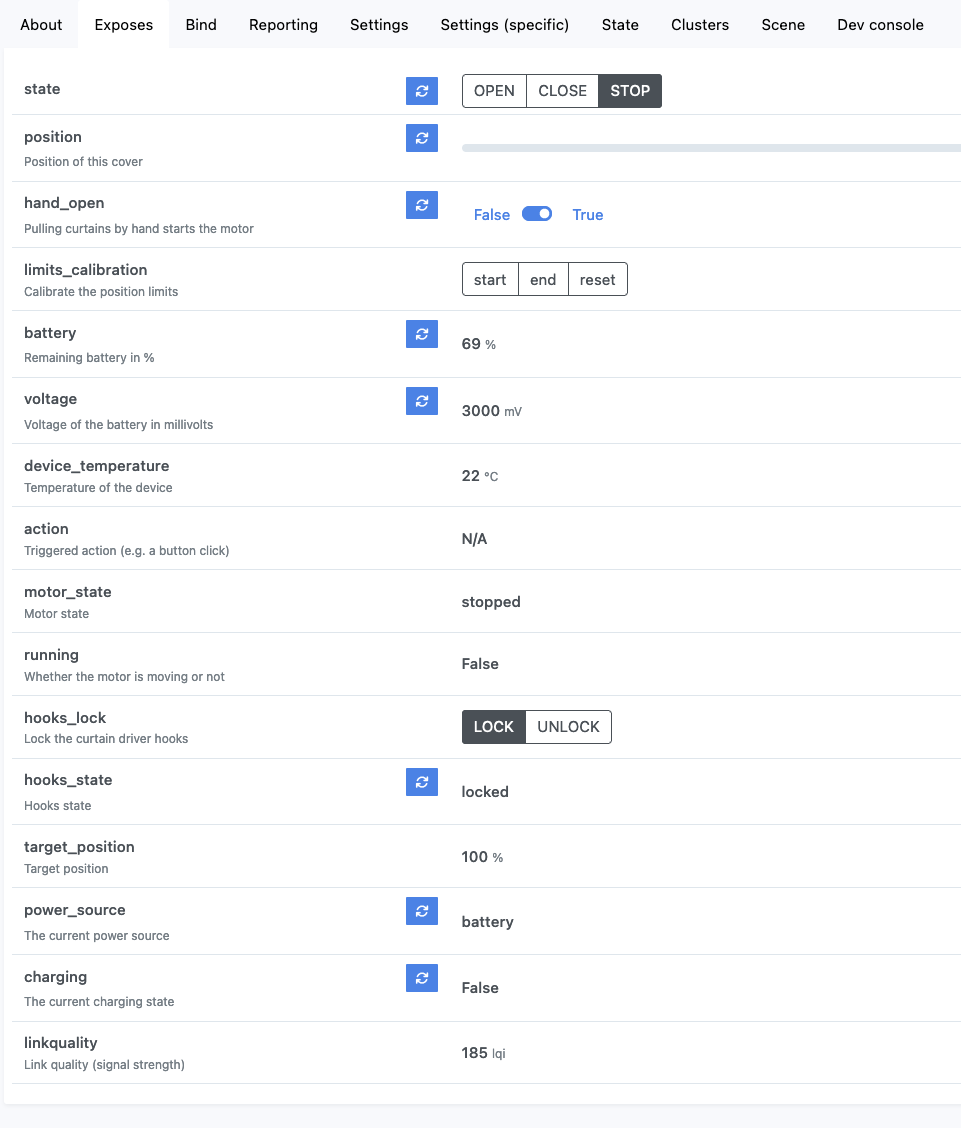

Looks like this when its not running:

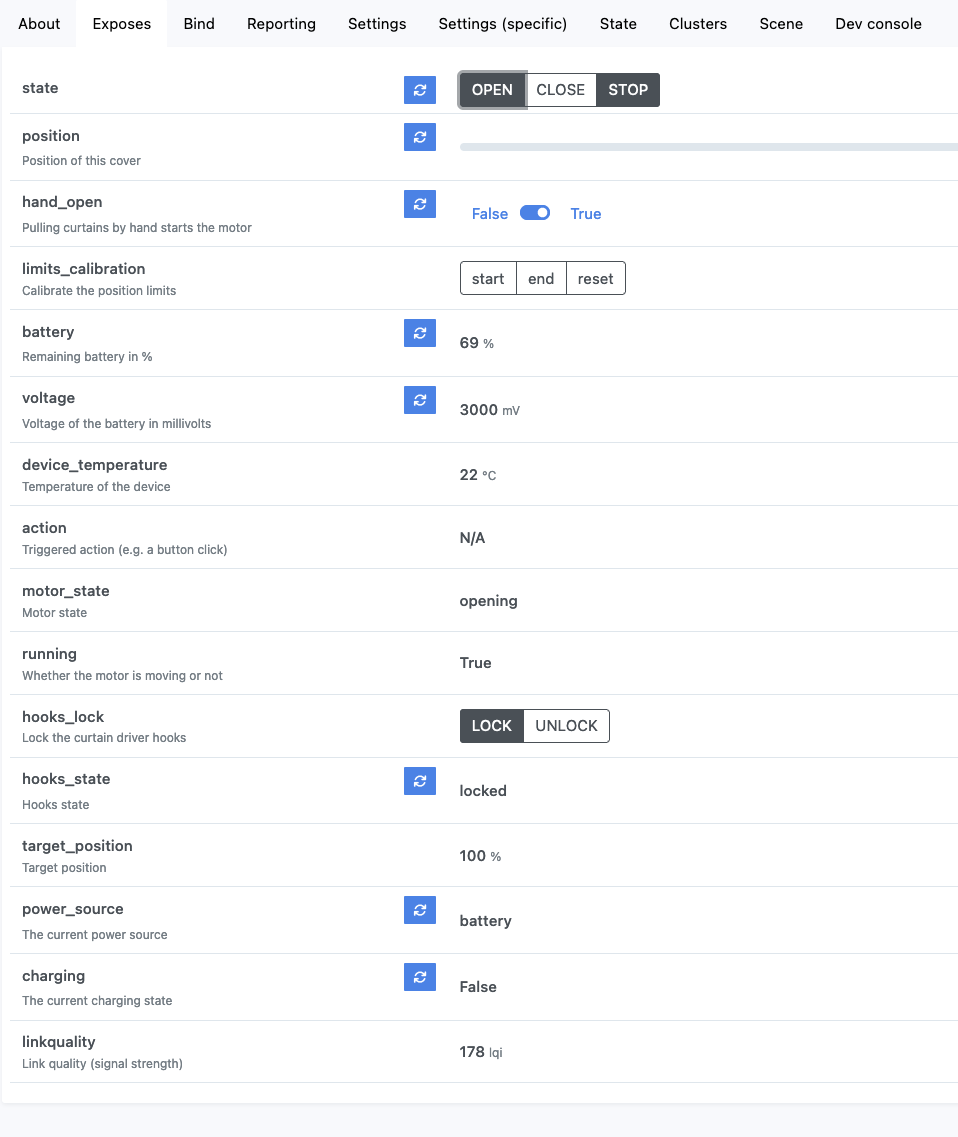

And when it runs:

Looks like this when its not running:

Nah, still the same issue in MQTT log:

2023-01-02 10:20:00.421 DEBUG (MainThread) [homeassistant.components.mqtt.client] Received message on zigbee2mqtt/Bedroom Curtain Left: b'{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' 2023-01-02 10:20:00.424 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'switch.bedroom_curtain_left_hand_open', 'name': 'Bedroom Curtain Left hand_open', 'this': <template TemplateStateFromEntityId(switch.bedroom_curtain_left_hand_open)>} and Template("{% if value_json.hand_open %} true {% else %} false {% endif %}") 2023-01-02 10:20:00.425 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'sensor.bedroom_curtain_left_battery', 'name': 'Bedroom Curtain Left battery', 'this': <template TemplateStateFromEntityId(sensor.bedroom_curtain_left_battery)>} with default value 'default' and Template("{{ value_json.battery }}") 2023-01-02 10:20:00.427 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'sensor.bedroom_curtain_left_device_temperature', 'name': 'Bedroom Curtain Left device temperature', 'this': <template TemplateStateFromEntityId(sensor.bedroom_curtain_left_device_temperature)>} with default value 'default' and Template("{{ value_json.device_temperature }}") 2023-01-02 10:20:00.428 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'sensor.bedroom_curtain_left_action', 'name': 'Bedroom Curtain Left action', 'this': <template TemplateStateFromEntityId(sensor.bedroom_curtain_left_action)>} with default value 'default' and Template("{{ value_json.action }}") 2023-01-02 10:20:00.430 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'sensor.bedroom_curtain_left_motor_state', 'name': 'Bedroom Curtain Left motor state', 'this': <template TemplateStateFromEntityId(sensor.bedroom_curtain_left_motor_state)>} with default value 'default' and Template("{{ value_json.motor_state }}") 2023-01-02 10:20:00.430 WARNING (MainThread) [homeassistant.helpers.template] Template variable warning: 'dict object' has no attribute 'motor_state' when rendering '{{ value_json.motor_state }}' 2023-01-02 10:20:00.435 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'sensor.bedroom_curtain_left_hooks_state', 'name': 'Bedroom Curtain Left hooks state', 'this': <template TemplateStateFromEntityId(sensor.bedroom_curtain_left_hooks_state)>} with default value 'default' and Template("{{ value_json.hooks_state }}") 2023-01-02 10:20:00.435 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'sensor.bedroom_curtain_left_target_position', 'name': 'Bedroom Curtain Left target position', 'this': <template TemplateStateFromEntityId(sensor.bedroom_curtain_left_target_position)>} with default value 'default' and Template("{{ value_json.target_position }}") 2023-01-02 10:20:00.436 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'sensor.bedroom_curtain_left_power_source', 'name': 'Bedroom Curtain Left power source', 'this': <template TemplateStateFromEntityId(sensor.bedroom_curtain_left_power_source)>} with default value 'default' and Template("{{ value_json.power_source }}") 2023-01-02 10:20:00.436 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'select.bedroom_curtain_left_hooks_lock', 'name': 'Bedroom Curtain Left hooks lock', 'this': <template TemplateStateFromEntityId(select.bedroom_curtain_left_hooks_lock)>} and Template("{{ value_json.hooks_lock }}") 2023-01-02 10:20:00.436 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'binary_sensor.bedroom_curtain_left_running', 'name': 'Bedroom Curtain Left running', 'this': <template TemplateStateFromEntityId(binary_sensor.bedroom_curtain_left_running)>} and Template("{{ value_json.running }}") 2023-01-02 10:20:00.436 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'binary_sensor.bedroom_curtain_left_charging', 'name': 'Bedroom Curtain Left charging', 'this': <template TemplateStateFromEntityId(binary_sensor.bedroom_curtain_left_charging)>} and Template("{{ value_json.charging }}") 2023-01-02 10:20:00.437 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'binary_sensor.bedroom_curtain_left_update_available', 'name': 'Bedroom Curtain Left update available', 'this': <template TemplateStateFromEntityId(binary_sensor.bedroom_curtain_left_update_available)>} and Template("{{ value_json['update']['state'] == "available" }}") 2023-01-02 10:20:00.437 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'position_open': 100, 'position_closed': 0, 'tilt_min': 0, 'tilt_max': 100, 'entity_id': 'cover.bedroom_curtain_left', 'name': 'Bedroom Curtain Left', 'this': <template TemplateStateFromEntityId(cover.bedroom_curtain_left)>} and Template("{{ value_json.position }}") 2023-01-02 10:20:00.437 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'update.bedroom_curtain_left', 'name': 'Bedroom Curtain Left', 'this': <template TemplateStateFromEntityId(update.bedroom_curtain_left)>} and Template("{{ value_json['update']['installed_version'] }}") 2023-01-02 10:20:00.437 DEBUG (MainThread) [homeassistant.components.mqtt.update] Non-dictionary JSON payload detected after processing payload '6168' on topic zigbee2mqtt/Bedroom Curtain Left 2023-01-02 10:20:00.438 DEBUG (MainThread) [homeassistant.components.mqtt.models] Rendering incoming payload '{"action":null,"battery":100,"charging":false,"device_temperature":19,"hand_open":null,"hooks_lock":"UNLOCK","hooks_state":"unlocked","last_seen":"2023-01-02T09:20:00.397Z","linkquality":255,"position":83,"power_outage_count":7,"power_source":"battery","running":false,"state":"OPEN","target_position":83,"update":{"installed_version":6168,"latest_version":6168,"state":"idle"},"update_available":false,"voltage":3000}' with variables {'entity_id': 'cover.bedroom_curtain_left', 'name': 'Bedroom Curtain Left', 'this': <template TemplateStateFromEntityId(cover.bedroom_curtain_left)>} and Template("{{ value_json.motor_state if value_json.motor_state and value_json.motor_state != 'stopped' else value_json.state }}")

Koenkk · 2022-12-17T09:16:14Z

Thanks!

mandrean mentioned this pull request Dec 7, 2022

Improve support for Aqara / Xiaomi Curtain Drivers #4943

Closed

mandrean force-pushed the ZNCLBL01LM_converters branch 2 times, most recently from ef5a09b to f3187ad Compare December 8, 2022 02:24

Improve ZNCLBL01LM support

7333a23

- Refactor converters - Clearing limits calibration - Opening/closing hooks - Enabling/disabling "pull to open/close"

mandrean force-pushed the ZNCLBL01LM_converters branch from f3187ad to 66018ba Compare December 8, 2022 02:26

Apply eslint fix

e272344

mandrean force-pushed the ZNCLBL01LM_converters branch from 66018ba to e272344 Compare December 8, 2022 02:37

Support limits calibration

32d6ee5

mandrean force-pushed the ZNCLBL01LM_converters branch from 3b69f6b to 32d6ee5 Compare December 8, 2022 03:06

Koenkk reviewed Dec 8, 2022

View reviewed changes

buhito81 mentioned this pull request Dec 12, 2022

Xiaomi ZNCLBL01LM: Template variable warning: 'dict object' has no attribute 'motor_state' when rendering '{{ value_json.motor_state }}' Koenkk/zigbee2mqtt#15116

Closed

mandrean force-pushed the ZNCLBL01LM_converters branch from 1c2a64b to 93a5ed0 Compare December 14, 2022 14:27

Koenkk reviewed Dec 14, 2022

View reviewed changes

Rename hooks_action

6be390d

mandrean force-pushed the ZNCLBL01LM_converters branch from 93a5ed0 to 6be390d Compare December 14, 2022 19:36

mandrean requested a review from Koenkk December 15, 2022 09:05

Koenkk added 3 commits December 15, 2022 20:07

Update xiaomi.js

2e8ce65

Update xiaomi.js

27e634c

Update toZigbee.js

9aecc89

Koenkk merged commit 4793794 into Koenkk:master Dec 17, 2022

mandrean deleted the ZNCLBL01LM_converters branch December 17, 2022 09:45
