htmlwidgets::saveWidget selfContained adds <pre> tags around custom HTML #358
Comments
|
I have a marginally related issue w/ When selfContained = TRUE, the following: attach_dependencies <- function(graph) {
jquery <- htmltools::htmlDependency(
"jquery", version = "3.4.1",
src = list(href = "https://cdnjs.cloudflare.com/ajax/libs/jquery/3.4.1/"),
script = "jquery.min.js"
)
bootstrap <- htmltools::htmlDependency(
"bootstrap",
version = "3.4.1",
src = list(href = "https://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/3.4.1/css/"),
stylesheet = "bootstrap.min.css"
)
graph$dependencies %<>% c(list(jquery, bootstrap))
graph
}
graph %<>% attach_dependencies()
graph %>% htmlwidgets::saveWidget("my_widget.html", selfcontained = T)Renders out as: <head>
<meta charset="utf-8">
<title>visNetwork</title>
<style>body{background-color:white;}</style>
<!-- minfied htmlwidgets src --><script></script>
<!-- minified vis-420.1/vis.css --><style type="text/css"></style>
<!-- minified vis.js --><script></script>
<!-- minified visnetwork bindings --><script></script>
<!-- minified jquery src --><script></script>
<!-- HERE IS THE PROBLEM -->
<!-- minified bootstrap css -->
<style type="text/css; charset=utf-8">
</style>
<!-- Above "type" is appended with "charset=utf-8" -->
<style type="text/css">div.vis-tooltip {display : none}</style>
</head>selfcontained = false<head>
<meta charset="utf-8">
<style>body{background-color:white;}</style>
<script src="workflow_graph_zoomed_files/htmlwidgets-1.3/htmlwidgets.js"></script>
<link href="workflow_graph_zoomed_files/vis-4.20.1/vis.css" rel="stylesheet">
<script src="workflow_graph_zoomed_files/vis-4.20.1/vis.min.js"></script>
<script src="workflow_graph_zoomed_files/visNetwork-binding-2.0.9/visNetwork.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.4.1/jquery.min.js"></script>
<link href="https://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/3.4.1/css/bootstrap.min.css" rel="stylesheet">
<title>visNetwork</title>
<style type="text/css">div.vis-tooltip {display : none}</style>
</head>For whatever reason, in the case of the bootstrap stylesheet, when trying to embed it, As a result of this, the bootstrap stylesheet doesn't appear to be applied to my document. The only thing that seems to fix this client-side (via devtools / browser inspect) is to modify the <style type="text/css; charset=utf-8">...</style>back to: <style type="text/css">...</style>In order to fix this mangling, I can probably run some clientside jquery that just finds instances of this value for type and restores them, but this fix isn't exactly cute. |
|
The following serves as an effective workaround: // inst/lib/fix_utf.js
$(function() {
$('style[type="text/css; charset=utf-8"]').attr("type", "text/css");
})attach_dependencies <- function(graph) {
jquery <- htmltools::htmlDependency(
"jquery", version = "3.4.1",
src = list(href = "https://cdnjs.cloudflare.com/ajax/libs/jquery/3.4.1/"),
script = "jquery.min.js"
)
bootstrap <- htmltools::htmlDependency(
"bootstrap",
version = "3.4.1",
src = list(href = "https://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/3.4.1/css/"),
stylesheet = "bootstrap.min.css"
)
fix_utf <- htmltools::htmlDependency(
"fix_utf",
"0.0.0.9001",
package = "mandrake",
src = "lib",
script = "fix_utf.js"
)
graph$dependencies %<>% c(list(jquery, bootstrap, fix_utf))
graph
}
graph %<>% attach_dependencies()
graph %>% htmlwidgets::saveWidget("my_widget.html", selfcontained = T)
|
|
I'm having the same issue. |
|
I'm not seeing it, it might be down to your Pandoc version. What does |
|
@jcheng5 were you able to reproduce this with the above mentioned versions? |
|
@andrewdenner I just rendered @rfaelens reprex using your PR. Unfortunately the result remains the same on my machine. |
The
timevispackage uses the functiontimevis_htmlto add a custom zoom menu:https://github.com/daattali/timevis/blob/be9756629bf12f5225d578d10c093d8f968f8551/R/timevis.R#L505
This works fine in combination with htmlwidgets::saveWidget selfContained=FALSE.

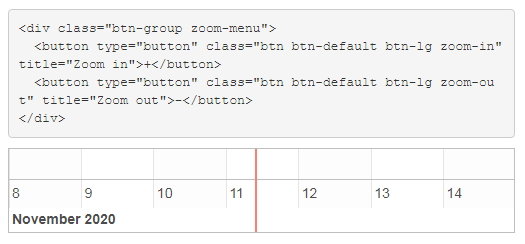

When using the selfContained=TRUE option however, the custom HTML is wrapped in
<pre>tags, and is therefore not present in the output.As a workaround, the generated HTML code can be adapted afterwards, but this is less than ideal.
Minimal reprex: https://gist.github.com/rfaelens/9dc31900c8e6601f2b978be4f5c4ec43
Referencing original issue: daattali/timevis#87
The text was updated successfully, but these errors were encountered:
