Add README to the tomcat-servlet-example #850

Author: fstab

examples/tomcat-servlet-example/README.md

@@ -0,0 +1,82 @@
+# Tomcat Servlet Example
+
+## Build
+
+This example is built as part of the `client_java` project.
+
+```
+./mvnw package
+```
+
+## Run
+
+The build creates a JAR file with the example application in `./examples/tomcat-servlet-example/target/`.
+
+```
+java -jar ./examples/tomcat-servlet-example/target/tomcat-servlet-example-1.0.0-alpha-2-SNAPSHOT.jar
+```
+
+Accessing [http://localhost:8080/](http://localhost:8080/) with a Web browser should yield `Hello, World!`.
+
+## Manually testing the Metrics Endpoint
+
+Metrics are available on [http://localhost:8080/metrics](http://localhost:8080/metrics). The default Prometheus text format looks like this:
+
+```
+# HELP request_duration_seconds request duration in seconds
+# TYPE request_duration_seconds histogram
+request_duration_seconds_bucket{http_status="200",le="0.005"} 0
+request_duration_seconds_bucket{http_status="200",le="0.01"} 1
+request_duration_seconds_bucket{http_status="200",le="0.025"} 1
+request_duration_seconds_bucket{http_status="200",le="0.05"} 2
+request_duration_seconds_bucket{http_status="200",le="0.1"} 5
+request_duration_seconds_bucket{http_status="200",le="0.25"} 11
+request_duration_seconds_bucket{http_status="200",le="0.5"} 12
+request_duration_seconds_bucket{http_status="200",le="1.0"} 12
+request_duration_seconds_bucket{http_status="200",le="2.5"} 12
+request_duration_seconds_bucket{http_status="200",le="5.0"} 12
+request_duration_seconds_bucket{http_status="200",le="10.0"} 12
+request_duration_seconds_bucket{http_status="200",le="+Inf"} 12
+request_duration_seconds_count{http_status="200"} 12
+request_duration_seconds_sum{http_status="200"} 1.513772412
+# HELP requests_total total number of requests
+# TYPE requests_total counter
+requests_total{http_status="200"} 12.0
+```
+
+The exporter servlet supports a `debug` URL parameter to quickly view other formats in your Web browser:
+
+* [http://localhost:8080/metrics?debug=text](http://localhost:8080/metrics?debug=text): Prometheus text format, same as without the `debug` option.
+* [http://localhost:8080/metrics?debug=openmetrics](http://localhost:8080/metrics?debug=openmetrics): OpenMetrics text format.
+* [http://localhost:8080/metrics?debug=prometheus-protobuf](http://localhost:8080/metrics?debug=prometheus-protobuf): Text representation of the Prometheus protobuf format.
+
+## Testing with the Prometheus Server
+
+1. Download the latest Prometheus server release from [https://github.com/prometheus/prometheus/releases](https://github.com/prometheus/prometheus/releases).
+2. Extract the archive
+3. Edit `prometheus.yml` and append the following snippet at the end:
+   ```yaml
+    job_name: "tomcat-servlet-example"
+    static_configs:
+      - targets: ["localhost:8080"]
+   ```
+4. Run with native histograms and examplars enabled:
+   ```shell
+   ./prometheus --enable-feature=native-histograms --enable-feature=exemplar-storage
+   ```
+
+Verify that the `tomcat-servlet-example` target is up on [http://localhost:9090/targets](http://localhost:9090/targets).
+

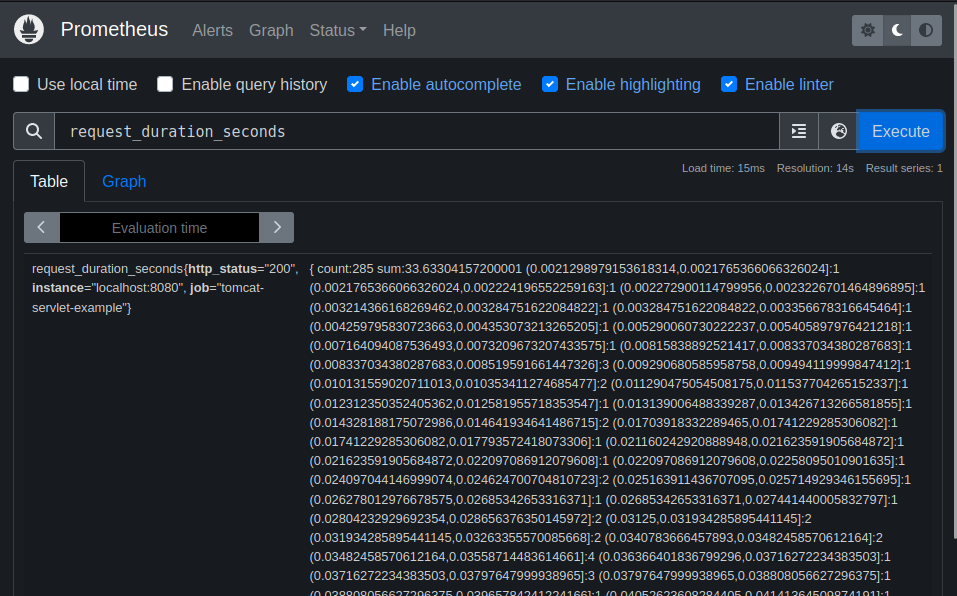

+Prometheus is now scraping metrics in Protobuf format. If you type the name `request_duration_seconds` you will see a non-human-readable representation of the histogram including the native buckets:
+
+![Screenshot showing a Prometheus Native Histogram in Text Format](https://github.com/prometheus/client_java/assets/330535/863efe0b-a9eb-40ae-a078-72497abc6f04)
+
+Note: You have to run at least one GET request on the Hello World endpoint [http://localhost:8080](http://localhost:8080) before you see the metric.
+
+Use the `histogram_quantile()` function to calculate quantiles from the native histogram:
+
+```
+histogram_quantile(0.95, rate(request_duration_seconds[10m]))
+```
+
+![Screenshot showing the 95th Percentile Calculated from a Prometheus Native Histogram](https://github.com/prometheus/client_java/assets/330535/889fb769-9445-4f6f-8540-2b1ddffca55e)

examples/tomcat-servlet-example/src/main/java/io/prometheus/metrics/examples/tomcat_servlet/HelloWorldServlet.java

@@ -12,6 +12,9 @@

 import static io.prometheus.metrics.model.snapshots.Unit.nanosToSeconds;

+/**
+ * Hello World REST servlet, with an example counter and an example histogram.
+ */
 public class HelloWorldServlet extends HttpServlet {

     private final Random random = new Random(0);

examples/tomcat-servlet-example/src/main/java/io/prometheus/metrics/examples/tomcat_servlet/Main.java

@@ -1,16 +1,14 @@
 package io.prometheus.metrics.examples.tomcat_servlet;

-import io.prometheus.metrics.config.PrometheusProperties;
 import io.prometheus.metrics.exporter.servlet.jakarta.PrometheusMetricsServlet;
-import io.prometheus.metrics.model.registry.PrometheusRegistry;
 import org.apache.catalina.Context;
 import org.apache.catalina.LifecycleException;
 import org.apache.catalina.startup.Tomcat;

 import java.io.File;

 /**
- * Simple example using embedded Tomcat an the {@link PrometheusMetricsServlet}.
+ * Simple example using embedded Tomcat and the {@link PrometheusMetricsServlet}.
  */
 public class Main {
