fix: metrics > logs correlation flow (#711)

Ref: HDX-1537

<img width="907" alt="Screenshot 2025-03-25 at 1 52 45 PM" src="https://github.com/user-attachments/assets/f2cc7f1c-0516-4c04-a339-ec80e4cc188d" />

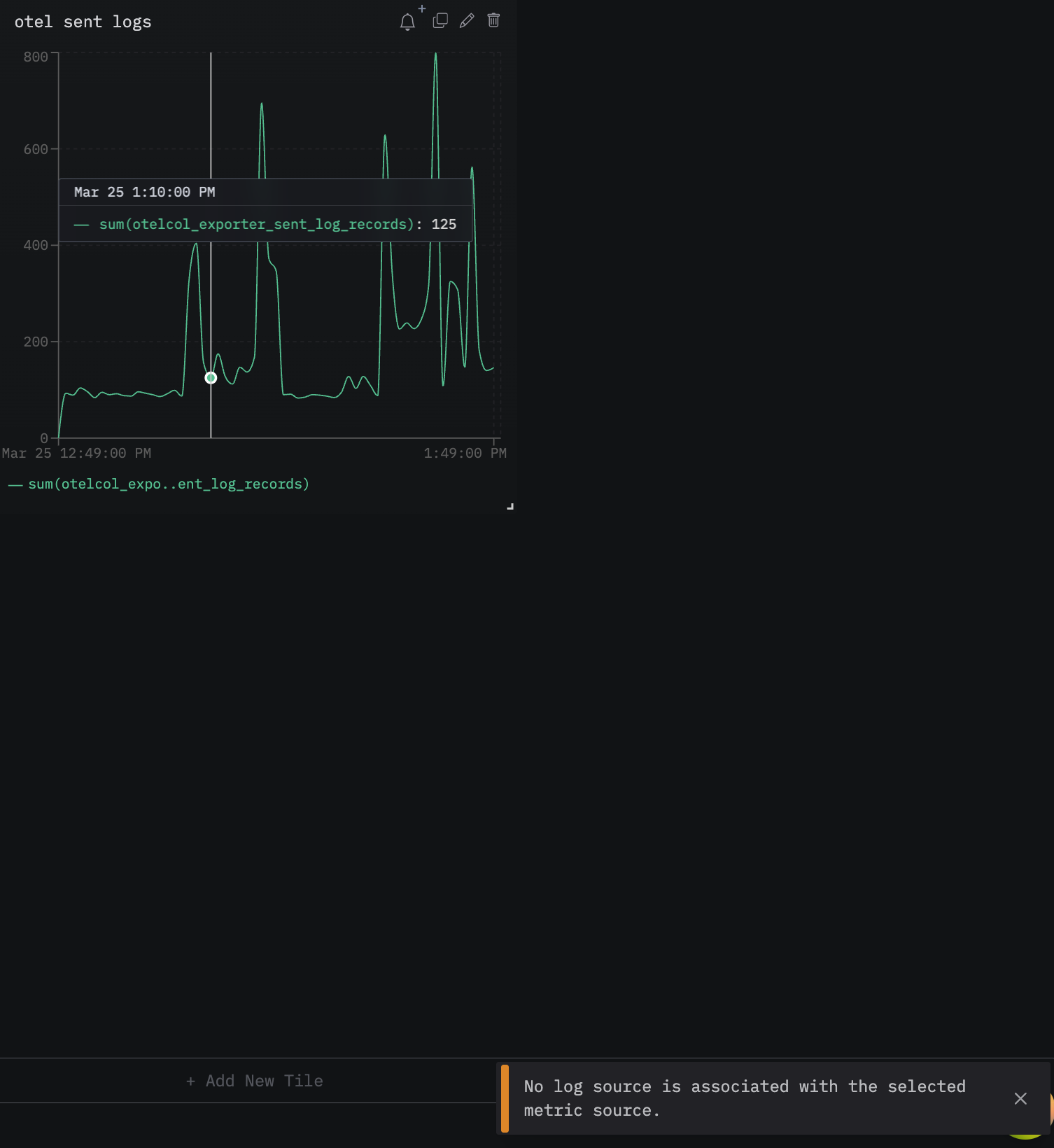

If no log source is associated with metric source, the app notifies users

<img width="753" alt="image" src="https://github.com/user-attachments/assets/453ea3f7-f721-4189-b035-623602483c6a" />

Author: wrn14897

.changeset/wet-owls-marry.md

@@ -0,0 +1,6 @@
+---
+"@hyperdx/common-utils": patch
+"@hyperdx/app": patch
+---
+
+fix: metrics > logs correlation flow

packages/app/src/components/DBTimeChart.tsx

@@ -3,12 +3,14 @@ import Link from 'next/link';
 import cx from 'classnames';
 import { add } from 'date-fns';
 import { ClickHouseQueryError } from '@hyperdx/common-utils/dist/clickhouse';
+import { isMetricChartConfig } from '@hyperdx/common-utils/dist/renderChartConfig';
 import {
   ChartConfigWithDateRange,
   DisplayType,
 } from '@hyperdx/common-utils/dist/types';
 import { Box, Button, Code, Collapse, Text } from '@mantine/core';
 import { useDisclosure } from '@mantine/hooks';
+import { notifications } from '@mantine/notifications';

 import {
   convertDateRangeToGranularityString,
@@ -132,22 +134,30 @@ export function DBTimeChart({
   }, [activeClickPayload]);

   const qparams = useMemo(() => {
-    if (!clickedActiveLabelDate || !sourceId) {
+    if (clickedActiveLabelDate == null || !source?.id == null) {
+      return null;
+    }
+    const isMetricChart = isMetricChartConfig(config);
+    if (isMetricChart && source?.logSourceId == null) {
+      notifications.show({
+        color: 'yellow',
+        message: 'No log source is associated with the selected metric source.',
+      });
       return null;
     }
     const from = clickedActiveLabelDate.getTime();
     const to = add(clickedActiveLabelDate, {
       seconds: convertGranularityToSeconds(granularity),
     }).getTime();
     return new URLSearchParams({
-      source: sourceId,
+      source: (isMetricChart ? source?.logSourceId : source?.id) ?? '',
       where: config.where,
       whereLanguage: config.whereLanguage || 'lucene',
       filters: JSON.stringify(config.filters),
       from: from.toString(),
       to: to.toString(),
     });
-  }, [clickedActiveLabelDate, config, granularity, sourceId]);
+  }, [clickedActiveLabelDate, config, granularity, source]);

   return isLoading && !data ? (
     <div className="d-flex h-100 w-100 align-items-center justify-content-center text-muted">

packages/common-utils/src/renderChartConfig.ts

@@ -1135,16 +1135,21 @@ async function translateMetricChartConfig(
   throw new Error(`no query support for metric type=${metricType}`);
 }

+export const isMetricChartConfig = (
+  chartConfig: ChartConfigWithOptDateRange,
+) => {
+  return chartConfig.metricTables != null;
+};
+
 export async function renderChartConfig(
   rawChartConfig: ChartConfigWithOptDateRange,
   metadata: Metadata,
 ): Promise<ChSql> {
   // metric types require more rewriting since we know more about the schema
   // but goes through the same generation process
-  const chartConfig =
-    rawChartConfig.metricTables != null
-      ? await translateMetricChartConfig(rawChartConfig, metadata)
-      : rawChartConfig;
+  const chartConfig = isMetricChartConfig(rawChartConfig)
+    ? await translateMetricChartConfig(rawChartConfig, metadata)
+    : rawChartConfig;

   const withClauses = await renderWith(chartConfig, metadata);
   const select = await renderSelect(chartConfig, metadata);
