doc: Added User-defined Git Repo (#4895)

* Added a doc on User-defined Git Repo

* Added GitOps for Helm Apps

* Added feature flag

* Added steps and gif for adding feature flag

* Elaborated the exact cluster, namespace, and CM

Author: ashokdevtron

docs/SUMMARY.md

@@ -70,6 +70,7 @@
       * [Rollout Deployment](user-guide/creating-application/deployment-template/rollout-deployment.md)
       * [Job and Cronjob](user-guide/creating-application/deployment-template/job-and-cronjob.md)
       * [StatefulSets](user-guide/creating-application/deployment-template/statefulset.md)
+    * [GitOps Configuration](user-guide/creating-application/gitops-config.md)
     * [Workflow Editor](user-guide/creating-application/workflow/README.md)
       * [CI Pipeline](user-guide/creating-application/workflow/ci-pipeline.md)
         * [Pre-Build/Post-Build Stages](user-guide/creating-application/workflow/ci-build-pre-post-plugins.md)

docs/user-guide/cloning-application.md

@@ -21,3 +21,7 @@ Now click on `Clone App` to clone the selected application.

 New application with a duplicate template is created.

+{% hint style="warning" %}
+When cloning an application with GitOps configuration, the configuration itself is not copied. To set up the configuration for your new application, refer [GitOps Configuration](./creating-application/gitops-config.md) guide.
+{% endhint %}
+

docs/user-guide/creating-application/README.md

@@ -12,6 +12,8 @@

 [Base Deployment Template](deployment-template.md)

+[GitOps Configuration](gitops-config.md)
+
 [Workflow Editor](workflow/README.md)

 [ConfigMaps](config-maps.md)

docs/user-guide/creating-application/gitops-config.md

@@ -0,0 +1,84 @@
+# GitOps Configuration
+
+{% hint style="warning" %}
+The 'GitOps Configuration' page appears only if the super-admin has enabled 'Allow changing git repository for application' in [Global Configurations → GitOps](../global-configurations/gitops.md).
+{% endhint %}
+
+## Introduction
+
+This configuration is an extension of the [GitOps](../global-configurations/gitops.md) settings present in [Global Configurations](../global-configurations/README.md) of Devtron. Therefore, make sure you read it before making any changes to your app configuration.
+
+The application-level GitOps configuration offers the flexibility to add a custom Git repo (as opposed to Devtron auto-creating a repo for your application).
+
+---
+
+## Adding Custom Git Repo for GitOps
+
+{% hint style="warning" %}
+### Who Can Perform This Action?
+Users need to have [Admin permission](../../user-guide/global-configurations/authorization/user-access.md#role-based-access-levels) or above (along with access to the environment and application) to configure user-defined Git repo.
+{% endhint %}
+
+### For Devtron Apps
+
+1. Go to **Applications** → **Devtron Apps** (tab) → (choose your app) → **App Configuration** (tab) → **GitOps Configuration**.
+
+    ![Figure 1: App-level GitOps Config](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/app-config-gitops.jpg)
+
+2. Assuming a GitOps repo was not added to your application earlier, you get 2 options:
+
+    * **Auto-create repository** - Select this option if you wish to proceed with the default behavior. It will create a repository automatically, named after your application with a prefix. Thus saving you the trouble of creating one manually.
+
+    * **Commit manifests to a desired repository** - Select this option if you wish to add a custom repo that is already created with your [Git provider](../global-configurations/gitops.md#supported-git-providers). Enter its link in the `Git Repo URL` field.
+
+    ![Figure 2: Repo Creation](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/gitops-config.jpg)
+
+
+{% hint style="warning" %}
+GitOps repositories, whether auto-created by Devtron or added manually, are immutable. This means they cannot be modified after creation. The same is true if you have an existing CD pipeline that uses/used GitOps for deployment.
+{% endhint %}
+
+3. Click **Save**.
+
+    ![Figure 3: Saved GitOps Config](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/saved-config.jpg)
+

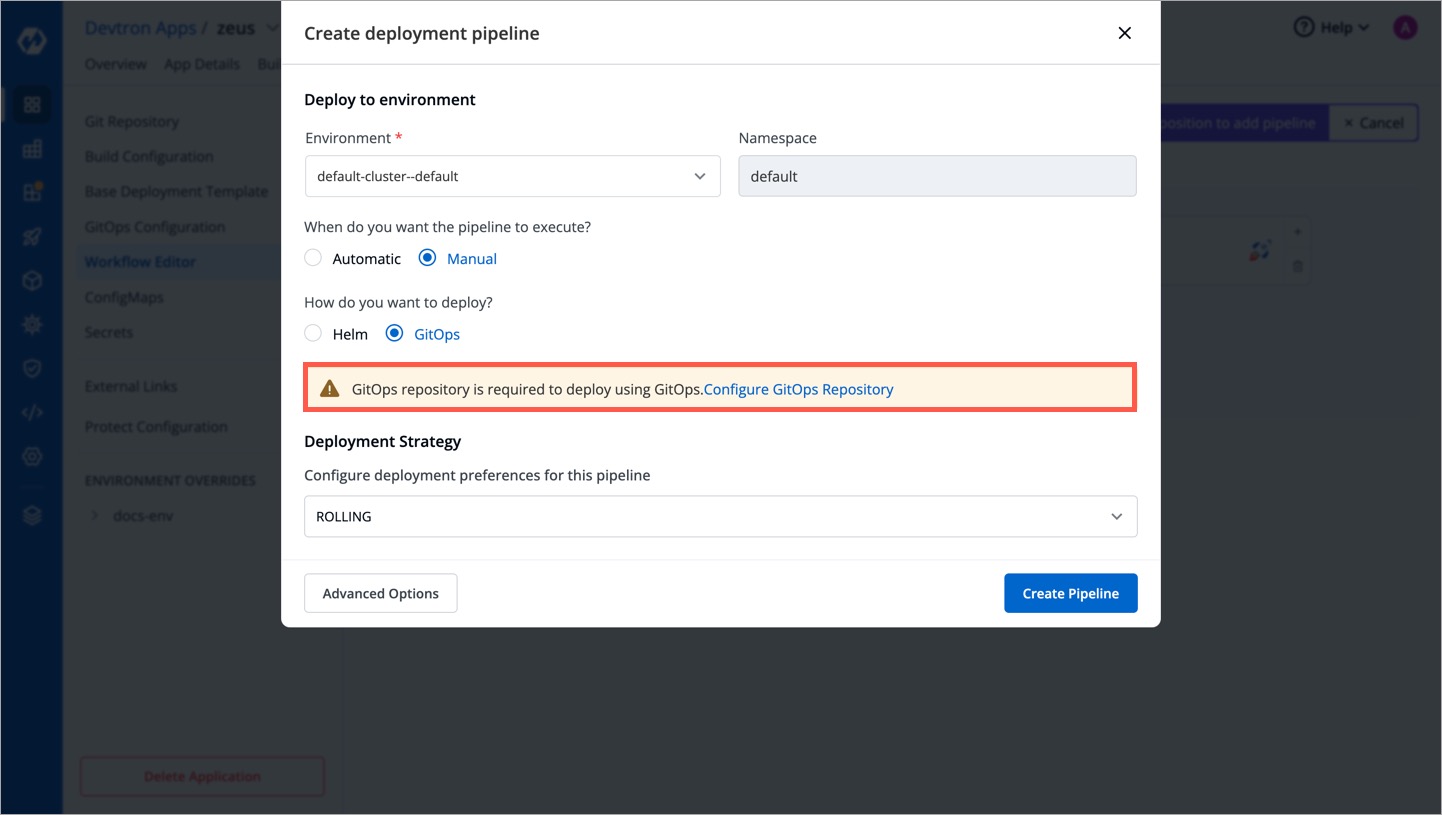

+**Note**: In case you skipped the GitOps configuration for your application and proceeded towards the [creation of a new CD pipeline](../creating-application/workflow/cd-pipeline.md#creating-cd-pipeline)(that uses GitOps), you will be prompted to configure GitOps as shown below:
+
+![Figure 4: Incomplete GitOps Config](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/gitops-not-configured.jpg)
+
+
+### For Helm Apps
+
+You can [deploy a helm chart](../deploy-chart/overview-of-charts.md#deploying-chart) using either Helm or GitOps. Let's assume you wish to deploy `airflow` chart.
+
+1. Select the helm chart from the [Chart Store](../deploy-chart/README.md).
+
+    ![Figure 5: Choosing a Helm Chart](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/chart-selection.jpg)
+
+2. Click **Configure & Deploy**.
+
+    ![Figure 6: Configure & Deploy Button](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/configure-deploy.jpg)
+
+3. After you enter the `App Name`, `Project`, and `Environment`; an option to choose the deployment approach (i.e., Helm or GitOps) would appear.
+
+    ![Figure 7: Deployment Approach](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/deployment-method.jpg)
+
+4. Select **GitOps**.
+
+    ![Figure 8: Selecting GitOps Method](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/select-gitops.jpg)
+
+5. A modal window will appear for you to enter a Git repository. Just like [Devtron Apps](#for-devtron-apps) (step 2), you get two options:
+    * Auto-create repository
+    * Commit manifests to a desired repository
+
+    ![Figure 9: Adding a Repo](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/git-repository-helm-app.jpg)
+
+6. Enter your custom Git Repo URL, and click **Save**.
+
+    ![Figure 10: Saved GitOps Config for Helm App](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/gitops/custom-git-repo-helm-apps.jpg)
+
+Next, you may proceed to deploy the chart.
+
+{% hint style="warning" %}
+Once you deploy a helm app with GitOps, you cannot change its GitOps repo.
+{% endhint %}

docs/user-guide/creating-application/workflow/cd-pipeline.md

@@ -10,7 +10,7 @@ Click the '**+**' sign on CI Pipeline to attach a CD Pipeline to it.

 A basic `Create deployment pipeline` window will pop up.

-![Figure 1b: Creating CD Pipeline](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/workflow-cd-pipeline/ca-workflow-basic-v2.jpg)
+![Figure 1b: Creating CD Pipeline](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/workflow-cd-pipeline/cd-workflow-basic-v3.jpg)

 Here, you get three sections:

@@ -20,13 +20,14 @@ Here, you get three sections:

 ### Deploy to Environment

-This section expects three inputs from you:
+This section expects four inputs from you:

 | Setting     | Description                                                | Options                   |
 | ----------- | ---------------------------------------------------------- | ------------------------- |
 | Environment | Select the environment where you want to deploy your application | (List of available environments)  |
 | Namespace   | Automatically populated based on the selected environment | Not Applicable                           |
 | Trigger     | When to execute the deployment pipeline                   | **Automatic**: Deployment triggers automatically when a new image completes the previous stage (build pipeline or another deployment pipeline) <br /> **Manual**: Deployment is not initiated automatically. You can trigger deployment with a desired image. |
+| Deployment Approach | How to deploy the application | **Helm** or **GitOps** <br /> Refer [GitOps](../../global-configurations/gitops.md)  |

 ### Deployment Strategy
