Make docker and docker-compose work on WSL2 (#1375)

### Summary
> Describe your changes.

Fixes the docker-compose steps to work on WSL2 (Windows Subsystem for
Linux 2) and OSX. Updates documentation to use the new cncf tag when
building the container.

docker-compose is very helpful for dev setups and trying out
cartography.

### Checklist

### Testing performed
I started with a fresh clone of this branch and on _both_ OSX and
WSL2ran

1. `docker build -t cartography-cncf/cartography-dev -f dev.Dockerfile
./`
1. `docker-compose run cartography-dev make test`

I can confirm that both paths worked and ran the full test suite using
docker-compose.

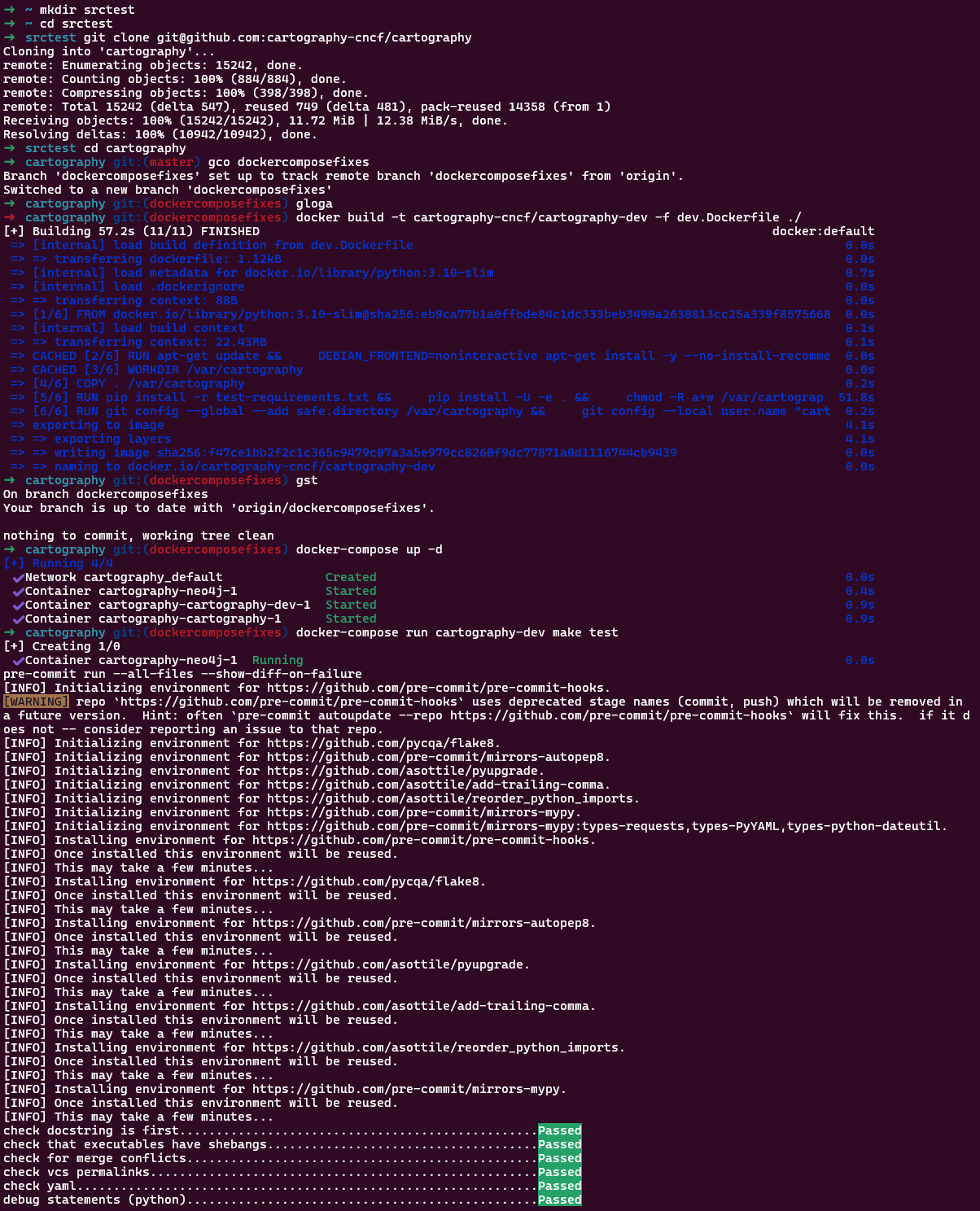

#### WSL2
Linter:

![image](https://github.com/user-attachments/assets/b165feb6-0d0a-4a9c-90dd-fe47e8390b0d)

Unit tests:

![image](https://github.com/user-attachments/assets/4cfa8a41-6775-4ac1-ad9c-6052163c0a17)

Integration tests:

![image](https://github.com/user-attachments/assets/f134dec5-8df2-4c9b-a7f6-57cccac51f89)

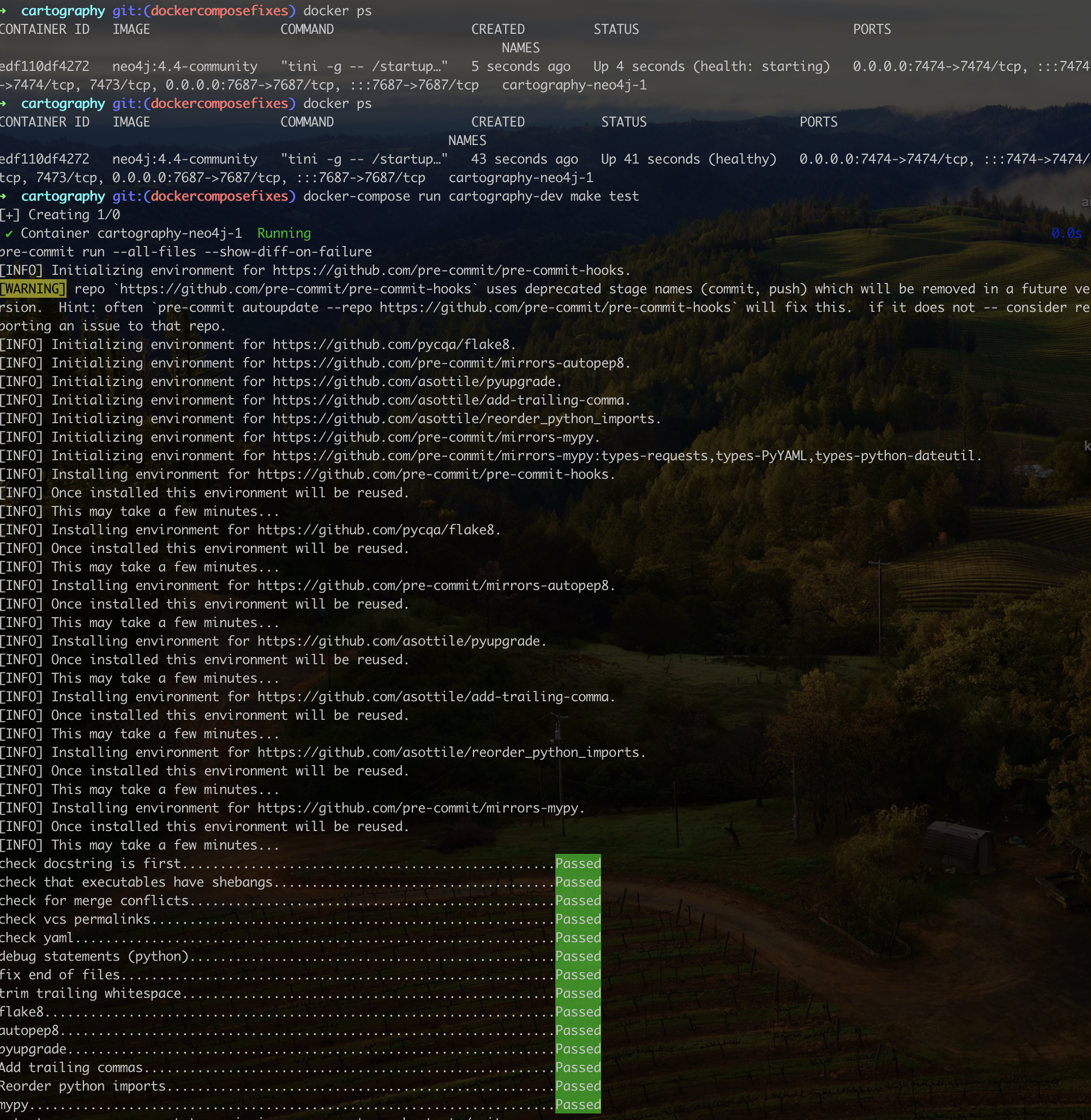

#### OSX
Linter:
<img width="1000" alt="Screenshot 2024-11-03 at 12 29 49 AM"
src="https://github.com/user-attachments/assets/e7840c2a-8065-4163-8057-3de902532291">

Unit tests:
<img width="997" alt="Screenshot 2024-11-03 at 12 30 07 AM"
src="https://github.com/user-attachments/assets/11d91723-776c-4438-b2a1-fe783e75e414">

Integration tests:
<img width="1003" alt="Screenshot 2024-11-03 at 12 30 22 AM"
src="https://github.com/user-attachments/assets/c2360ad5-a2c2-4309-91d0-1080dc9d0bb3">

---------

Signed-off-by: Alex Chantavy <[email protected]>

Author: Alex Chantavy

.cache/.gitignore

@@ -0,0 +1,5 @@
+# This .gitignore is a placeholder so that we can store .cache/ in github.
+# We are including a pre-created .cache in Github so that when
+# we run docker-compose in WSL2 during dev linting, WSL2 does not attempt
+# to create .cache/ with root as the owner. The contents of .cache
+# should never be pushed back upstream to the main cartography repo.

.env

@@ -1,3 +1,4 @@
-# This file is for use with docker compose so that mounting Neo4j volumes doesn't fail with perms errs
-GID=10001
-UID=10001
+# This file is for docker-compose dev use so that mounting
+# Neo4j volumes doesn't fail with permissions errors.
+GID=1000
+UID=1000

Dockerfile

@@ -1,4 +1,5 @@
 # This is a thin distribution of the cartography software.
+# It is published at ghcr.io.
 FROM python:3.10-slim

 # the UID and GID to run cartography as

dev.Dockerfile

@@ -1,28 +1,33 @@
-# Builds cartography container for development by performing a Python editable install of the current source code.
+# This image is for dev only.
+# Performs a Python editable install of the current Cartography source.
+# Assumptions:
+# - This dockerfile will get called with .cache as a volume mount.
+# - The current working directory on the host building this container
+#   is the cartography source tree from github.
 FROM python:3.10-slim

-# the UID and GID to run cartography as
-# (https://github.com/hexops/dockerfile#do-not-use-a-uid-below-10000).
-ARG uid=10001
-ARG gid=10001
+# The UID and GID to run cartography as.
+# This needs to match the gid and uid on the host.
+# Update this to match. On WSL2 this is usually 1000.
+ARG uid=1000
+ARG gid=1000

 RUN apt-get update && \
     DEBIAN_FRONTEND=noninteractive apt-get install -y --no-install-recommends make git && \
     apt-get clean && \
     rm -rf /var/lib/apt/lists/*

-# Assumption: current working directory is the cartography source tree from github.
-COPY . /var/cartography
+# Install dependencies.
 WORKDIR /var/cartography
-ENV HOME=/var/cartography
+COPY . /var/cartography
+RUN pip install -r test-requirements.txt && \
+    pip install -U -e . && \
+    chmod -R a+w /var/cartography

-RUN pip install -U -e . && \
-    pip install -r test-requirements.txt && \
-    # Grant write access to the directory for unit and integration test coverage files
-    chmod -R a+w /var/cartography && \
-    # Sets the directory as safe due to a mismatch in the user that cloned the repo
-    # and the user that is going to run the unit&integ tests. This lets pre-commit work.
-    git config --global --add safe.directory /var/cartography && \
+# Now copy the entire source tree.
+ENV HOME=/var/cartography
+# Necessary for pre-commit.
+RUN git config --global --add safe.directory /var/cartography && \
     git config --local user.name "cartography"

 USER ${uid}:${gid}

docker-compose.yml

@@ -16,7 +16,6 @@ services:
       - ./.compose/neo4j/import:/import
       - ./.compose/neo4j/logs:/logs
       - ./.compose/neo4j/plugins:/plugins
-    user: "${UID}:${GID}"
     environment:
       # Raise memory limits:
       - NEO4J_dbms_memory_pagecache_size=1G
@@ -34,14 +33,15 @@ services:
       # Networking:
       - dbms.connector.bolt.listen_address=0.0.0.0:7687
     healthcheck:
-        test: ["CMD", "curl", "-f", "http://localhost:7474"]
+        test: ["CMD", "wget", "--no-verbose", "http://localhost:7474"]
         interval: 10s
         timeout: 10s
         retries: 10

 # Runs the standard cartography image available at ghcr.io.
   cartography:
-    image: ghcr.io/lyft/cartography:latest
+    image: ghcr.io/cartography-cncf/cartography:latest
+    platform: linux/x86_64
     # EXAMPLE: Our ENTRYPOINT is cartography, running specific command to sync AWS
     # command: ["-v", "--neo4j-uri=bolt://neo4j:7687", "--aws-sync-all-profiles"]
     init: true
@@ -50,6 +50,7 @@ services:
       - neo4j
     volumes:
     # Provide AWS creds to the container
+    # Add other volumes here to support other data providers.
       - ~/.aws:/var/cartography/.aws/
     environment:
       # Point to the neo4j service defined in this docker-compose file.
@@ -58,9 +59,8 @@ services:
 # Intended to run local automated tests, custom sync scripts, and local changes.
   cartography-dev:
     # See dev instructions: we assume that you have built this with
-    # `docker build -t lyft/cartography-dev . -f dev.Dockerfile`.
-    # Do not push this image remotely!
-    image: lyft/cartography-dev
+    # `docker build -t cartography-cncf/cartography-dev -f dev.Dockerfile ./`
+    image: cartography-cncf/cartography-dev
     init: true
     restart: on-failure
     depends_on:
@@ -71,6 +71,10 @@ services:
       # For pre-commit to work
       - .:/var/cartography
       - ./.cache/pre-commit:/var/cartography/.cache/pre-commit
+      # for git, for precommit
+      - ./.git:/var/cartography/.git
     environment:
       # Point to the neo4j service defined in this docker-compose file.
       - NEO4J_URL=bolt://cartography-neo4j-1:7687
+      # this is actually needed
+      - PRE_COMMIT_HOME=/var/cartography/.cache

docs/root/dev/developer-guide.md

@@ -99,8 +99,7 @@ We include a dev.Dockerfile that can help streamline common dev tasks. It is dif
 To use it, build dev.Dockerfile with
 ```bash
 cd /path/to/cartography/repo
-docker build -t lyft/cartography-dev -f . dev.Dockerfile
-docker-compose --profile dev up -d
+docker build -t cartography-cncf/cartography-dev -f dev.Dockerfile ./
 ```

 With that, there are some interesting things you can do with it.
@@ -137,7 +136,7 @@ If you don't like docker-compose or if it doesn't work for you for any reason, h
 #### Run unit tests with dev.Dockerfile

 ```bash
-docker run --rm lyft/cartography-dev make test_unit
+docker run --rm cartography-cncf/cartography-dev make test_unit
 ```

 This is a simple command because it doesn't require any volume mounts or docker networking.
@@ -148,7 +147,7 @@ This is a simple command because it doesn't require any volume mounts or docker
 docker run --rm \
     -v $(pwd):/var/cartography \
     -v $(pwd)/.cache/pre-commit:/var/cartography/.cache/pre-commit \
-    lyft/cartography-dev \
+    cartography-cncf/cartography-dev \
     make test_lint
 ```

@@ -173,7 +172,7 @@ and then call the integration test suite like this:
 docker run --rm \
   --network cartography-network \
   -e NEO4J_URL=bolt://cartography-neo4j:7687 \
-  lyft/cartography-dev \
+  cartography-cncf/cartography-dev \
   make test_integration
 ```

@@ -200,20 +199,20 @@ docker run --rm \
     -v $(pwd)/.cache/pre-commit:/var/cartography/.cache/pre-commit \
     --network cartography-network \
     -e NEO4J_URL=bolt://cartography-neo4j:7687 \
-    lyft/cartography-dev \
+    cartography-cncf/cartography-dev \
     make test
 ```

 #### Run a [custom sync script](#implementing-custom-sync-commands) with dev.Dockerfile

 ```bash
-docker run --rm lyft/cartography-dev python custom_sync.py
+docker run --rm cartography-cncf/cartography-dev python custom_sync.py
 ```

 #### Run cartography CLI with dev.Dockerfile

 ```bash
-docker run --rm lyft/cartography-dev cartography --help
+docker run --rm cartography-cncf/cartography-dev cartography --help
 ```

 ## How to write a new intel module

docs/root/install.md

@@ -124,7 +124,7 @@ Read on to see [other things you can do with Cartography](#things-to-do-next).
         -v ~/.aws:/var/cartography/.aws/ \
         -e AWS_PROFILE=1234_testprofile \
         -e AWS_DEFAULT_REGION=us-east-1 \
-        lyft/cartography --neo4j-uri bolt://cartography-neo4j:7687
+        cartography-cncf/cartography --neo4j-uri bolt://cartography-neo4j:7687
      ```

    If things work, your terminal will look like this where you see log messages displaying how many assets are being loaded to the graph:
@@ -139,7 +139,7 @@ Read on to see [other things you can do with Cartography](#things-to-do-next).

       - `AWS_DEFAULT_REGION` must be specified.
       - Our docker-compose.yml maps in `~/.aws/` on your host machine to `/var/cartography/.aws` in the cartography container, so the container has access to AWS profile and credential files.
-    - You can view a full list of Cartography's CLI arguments by running `docker run lyft/cartography --help`.
+    - You can view a full list of Cartography's CLI arguments by running `docker run cartography-cncf/cartography --help`.

 1. **View the graph.**


tests/unit/cartography/intel/github/test_github.py

@@ -16,11 +16,13 @@
 from tests.data.github.rate_limit import RATE_LIMIT_RESPONSE_JSON


+@patch('cartography.intel.github.util.time.sleep')
 @patch('cartography.intel.github.util.handle_rate_limit_sleep')
 @patch('cartography.intel.github.util.fetch_page')
 def test_fetch_all_handles_retries(
     mock_fetch_page: Mock,
     mock_handle_rate_limit_sleep: Mock,
+    mock_sleep: Mock,
 ) -> None:
     '''
     Ensures that fetch_all re-reaises the same exceptions when exceeding retry limit
